Duplex Stainless Steel Five Valve Manifolds valves

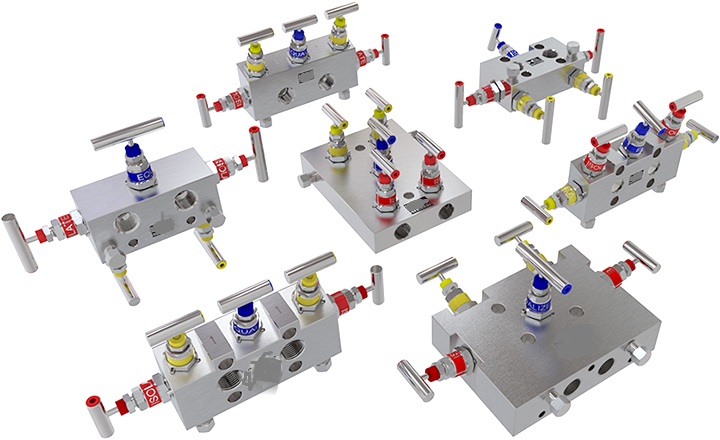

Our Duplex Stainless Steel Five Valve Manifolds are designed to reduce installation costs and improve safety performance. The consolidation of valves into one unit provides site engineers with a combination of instrument isolation together with bleed or vent and test facilities.

We are manufacturers and suppliers of Duplex Stainless Steel Five valve manifolds in a broad range and variety of designs like pipe to pipe (R), pipe to flange (T) and flange to flange (H) designed for connecting system impulse lines & transmitters. These manifolds valves consist of 1/2" NPT (F), pipe to flange or flange to flange connections and of one equalizer valve, two block valves and 2 nos 1/4" NPT (F) purge (VENT) connections. These DSS manifolds valves are constructed to sustain at high pressures and temperatures applications. These DSS 5 valve manifolds are rated for pressures as high as 6000 PSI at 200 o F or 4000 PSI at 500 o F. with the option of PTFE Packing and Grafoil Packing at higher temperature applications.

Duplex Stainless Steel Five Valve Manifolds valves

Contact Duplex steel Five Valve Instrumentations Manifold Manufacturers in India

All our Duplex Steel Five Valves Manifolds are manufactured under strict quality control plan by our well experienced engineers with zero tolerance in quality compromise from raw material to testing of all Duplex steel Five Valve Manifolds. We have set quality assurance plan to manufacture and supply zero leakage quality duplex steel Manifold valves. Our Manufactured Duplex Steel Five Way Manifolds are best suitable for applications such as measuring flow or level using a differential pressure transducer or gauge with calibration and instrument removal facilities. An option provided by DSS five way manifold valves which is not available on Duplex steel three valve types is connecting the “vent” port to known pressure sources to check the calibration of the instrument

All These Five Valve Manifolds valves body is manufactured from superior quality well tested Duplex steel raw materials by forging process to archive best possible strength for high pressure applications . Components of these DSS 3 Valve Manifolds are being manufactured on the state of art machine shop with fully calibrated tools and CNC and VMC machine centers to sustain at high temperature applications. This is the reason that our manufactured Duplex Steel Five Valve manifolds are the first choice of project engineers across all industrial sectors.

USER GUIDE FOR DUPLEX STAINLESS STEEL FIVE VALVE INSTRUMENTATIONS MANIFOOLDS
In normal operations the “isolate” DSS valves are open while the “equalize” and “vent” DSS valves are closed. This provides a differential reading to the gauge or transmitter
To zero the instrument, first close both “vent”valves and the downstream “isolate” DSS valve. Then open the “equalize” DSS valve and adjust the zero settings on the instrument
To remove the instrument, first close both the “isolate” DSS valves, then open the “equalize”DSS valve followed by opening both “vent” DSS valves to relieve pressure between the manifold and the instrument



Duplex Stainless Steel Straight Type- Remote Mounting Five Valve Manifolds

Duplex Stainless Steel Straight Type- Remote Mounting Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Two Equalizer Five Valve Manifolds

 Duplex Stainless Steel Straight Type - Remote Mounting- Two Equaliser Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Process Drain Five Valve Manifolds

 Duplex Stainless Steel Straight Type - Remote Mounting- Process Drain Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar (Two Equalizer) Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar-Process Drain (Two Equalizer) Five Valve Manifolds
 Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar-Process Drain (Two Equaliser) Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar  Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar (Two Equalizer) Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar - Process Drain Five Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar - Process Drain Five Valve Manifolds
Duplex Stainless Steel T-Type - Direct Mounting Five Valve Manifolds

Duplex Stainless Steel T-Type - Direct Mounting Five Valve Manifolds
Duplex Stainless Steel T-Type - Direct Mounting- Two Equalizer Five Valve Manifolds

 Duplex Stainless Steel T-Type - Direct Mounting- Two Equaliser Five Valve Manifolds
Duplex Stainless Steel T-Type - Direct Mounting- Process Drain Five Valve Manifolds

Duplex Stainless Steel T-Type - Direct Mounting- Process Drain Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting- Two Equalizer Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting- Two Equaliser Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting- Process Drain Five Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting- Process Drain Five Valve Manifolds
Duplex Stainless Steel H-Type - Direct Mounting Five Valve Manifolds

 Duplex Stainless Steel H-Type - Direct Mounting Five Valve Manifolds
Duplex Stainless Steel H-Type - Direct Mounting- Two Equalizer Five Valve Manifolds

Duplex Stainless Steel H-Type - Direct Mounting- Two Equaliser Five Valve Manifolds
Duplex Stainless Steel H-Type - Direct Mounting - Process Drain Five Valve Manifolds

 Duplex Stainless Steel H-Type - Direct Mounting - Process Drain Five Valve Manifolds



Duplex Steel Separately mounted (R) type Design Five Valve Manifolds



Duplex Steel Separately mounted (R) type Design Five Valve ManifoldsDuplex Steel Separately mounted (R) type Design Five Valve Manifolds are designs are manufactured and supplied for remote line mounting to the instrument in any selected position between the process line and the instrument. A Pair of 1/4" NPT (F), Connection with 1/4" NPT (M), Plug is provided with these units.



Contact Duplex steel Five Valve Instrumentations Manifold Manufacturers

Duplex Steel Single Flange Integral (T) type Design Five Valve Manifolds



Duplex Steel Single Flange Integral (T) type Design Five Valve ManifoldsDuplex Steel Single Flange Integral (T) type Design Five Valve Manifolds designees are manufactured and supplied for remote line mounting to the instrument in any selected position between the process line and the instrument. A Pair of 1/4" NPT (F), Connection with 1/4" NPT (M), Plug is provided with these units.



Duplex Steel Remote Mount with Vertical Bonnets Five valve Manifolds



Duplex Steel Remote Mount with Vertical Bonnets Five valve Manifolds



Duplex Steel Direct Mount Five valve Manifolds



Duplex Steel Direct Mount Five valve Manifolds
