Duplex Stainless Steel Flanged End Valves



We are manufacturers and suppliers of quality duplex steel flanged valves. These Duplex stainless steel valves are mechanical devices that controls the flow and pressure within a system or a standard process. These valves are essential engineered components of a pipeline system that conveys liquids, gases, vapors, slurries etc.

We are manufacturing different types of flanged valves in type or design of gate, globe, plug, ball, butterfly, check, diaphragm, pinch, pressure relief, control valves etc. Each of these typed valves has a different features and functional capabilities like Stopping and starting flow, Reduce or increase a flow, Controlling the direction of flow, Regulating a flow or process pressure, Relieve a pipe system of a certain pressure to serve the industrial purpose. We are manufacturing and supplying both type of valves self operated as well as manually operated or even these DSS valves can be operated with an actuator or pneumatic or hydraulic is operated.



Duplex steel Flanged End Ball Valves


We manufacture basically three type of duplex steel flanged ball valves . The full-port flanged ball valves internal diameter is equal to the inner diameter of the pipe to be installed. Venturi and reduced-port flanged ball valves are generally one pipe size smaller than the running pipe line size. Duplex stainless steel Flanged Ball valves are manufactured in different body configurations like Top entry Duplex Steel Flanged Ball valves allow access to valve internals for maintenance by removal of the valve Bonnet-cover. This type of valves facilitates maintenance engineers to not to remove valve from the pruning pipe system.

Split body Flanged Ball valves consists of a two parts, where one part is smaller as the other. The ball is inserted in the larger body part, and the smaller body part is assembled by a bolted connection. Further we can have these flanged ball valves body in Three pc, and one pc designs as well.

Duplex stainless steel 2pcs Flanged Ball Valves
Duplex steel 3pcs flanged ball valves



Contact to Duplex steel Flanged Ball Valves Manufacturersin India

Duplex Steel Flanged End Gate Valves



Duplex steel Flanged Gate valves primary function is to start or stop liquid flow, and when a straight-line flow of fluid and minimum flow restriction are needed. In service. These valves allows only two positions i.e. either fully open or fully shut.

The disk of this duplex steel Gate valve is completely removed when it is fully open; the disk is fully drawn up into the valve Bonnet. This mechanism allows flow through the valve at the same inside diameter as the pipe line in which the valve is installed. These flanged gate valve are generally used for a wide range of liquids and provides a tight seal when this valves are closed.

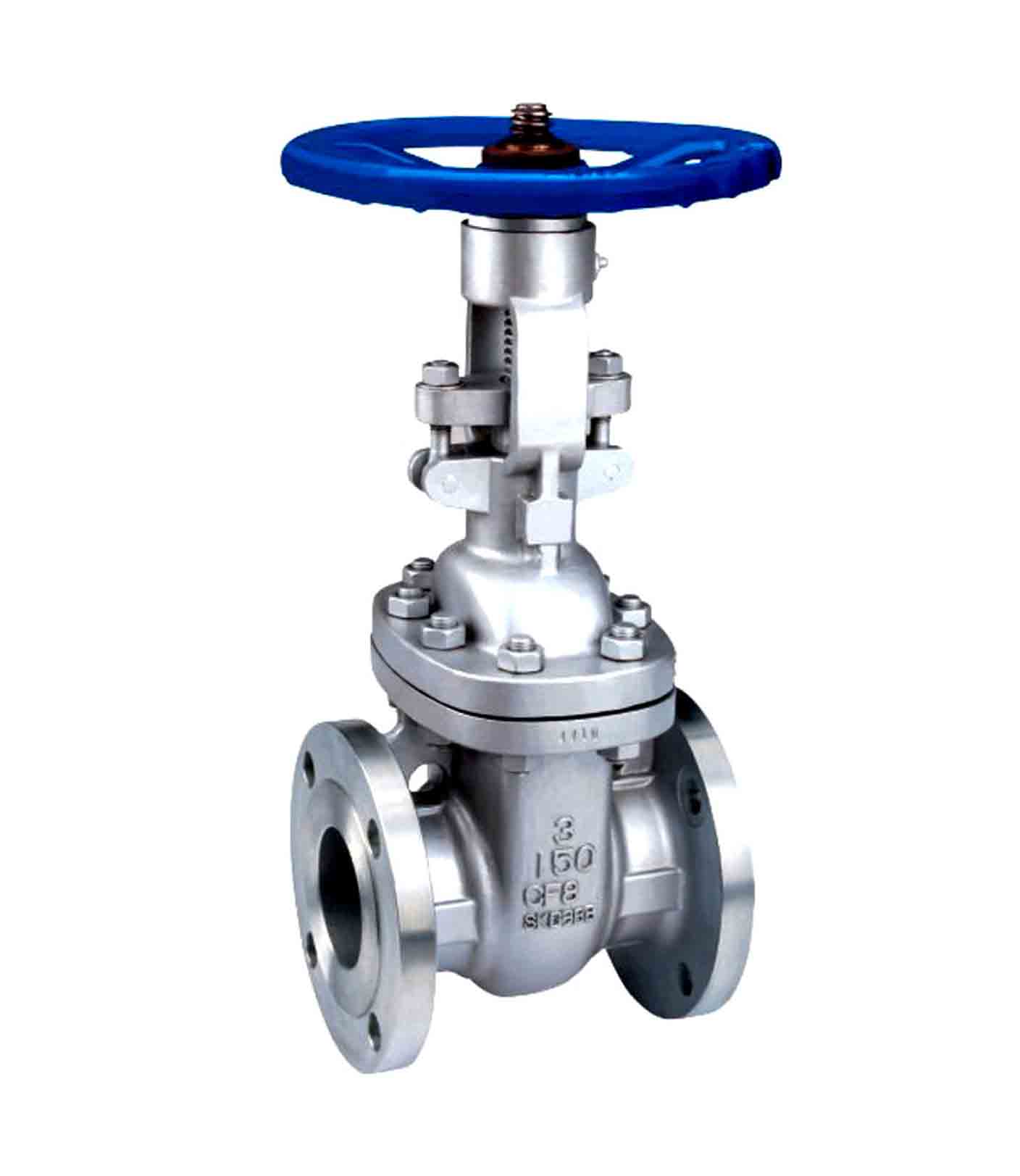

Duplex steel flanged Gate Valves

Contact to Duplex steel Gate Valves Manufacturersin India

Duplex Steel Flanged Globe Valves



We are manufacturing three type of Duplex Stainless Steel Flanged Globe Valves. Duplex steel Tee Pattern Flanged Globe valve, Duplex steel Angle Pattern Flanged Globe valves, Duplex steel Wye Pattern Flanged Globe valves.

Duplex Steel Flanged y type globe valve
Duplex steel flanged  tee pattern globe valve   Duplex Stainless Steel Angle patternFlanged Globe Valve



Contact to Duplex steel Globe Valves Manufacturersin India

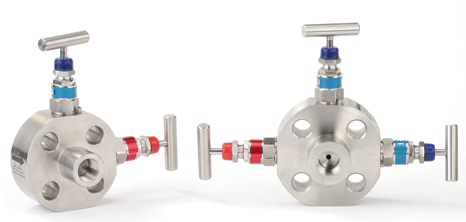

Duplex Steel Single Block and Bleed Mono Flanged Valves



Duplex Steel Single Block and Bleed Mono Flanged Valves

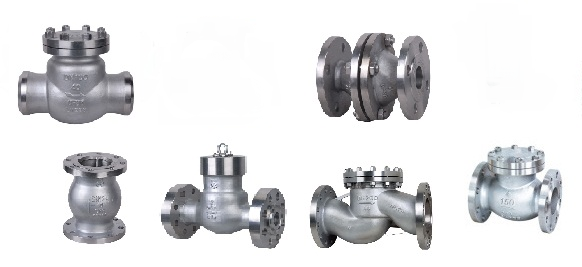

Duplex Steel Flanged Check Valves

Duplex Steel Flanged Check Valves





Duplex Steel Flanged Plug Valves

Duplex Steel Flanged Plug Valves

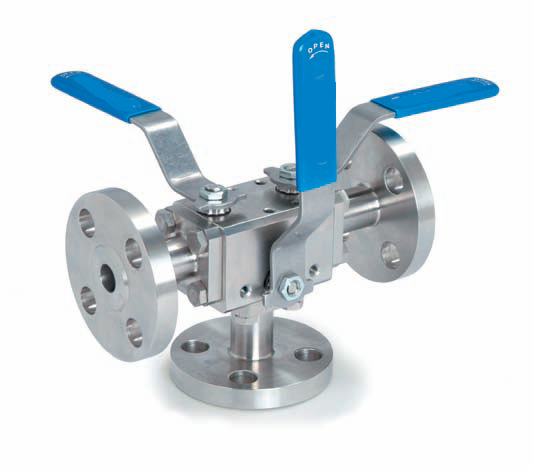

Duplex Steel Flanged DBB Valves



Duplex Steel Forged Flanged Valves

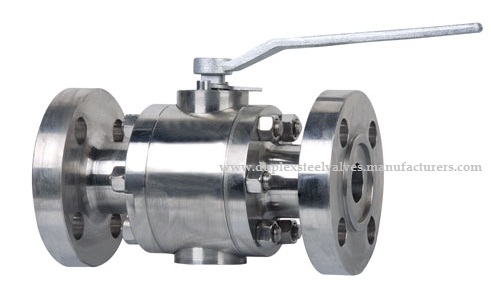

Duplex Stainless Steel Trunnion Mounted Flanged Ball Valve

Duplex Stainless Steel Trunnion Mounted Flanged Ball Valve



Duplex Stainless Steel Double Block and Bleed Valves Grade Options



  • ASTM A182 F51 Duplex Stainless Steel Flanged Valves
  • ASTM A182 F53Duplex Stainless Steel Flanged Valves
  • UNS 31803 Duplex Stainless Steel Flanged Valves
  • UNS 2205 Duplex Stainless Steel Flanged Valves
  • 1.4462 Duplex Stainless Steel Flanged Valves



Duplex Stainless Steel Flanged Valves Design Standards and Specifications

As per API 6D or ISO 14313:1999

Duplex Stainless Steel Flanged Flanged Valves Face to Face Standard

As per ASME B 16.10

Duplex Stainless Steel Flanged Valves Testing Standards

API Standard 594 covers Flanged, Lug, Wafer and Butt-welding design Flanged Valves material, face-to-face dimensions, pressure-temperature ratings, and examination, inspection, and test requirements of Flanged Valves.

Duplex Stainless Steel Flanged Valves Inspection Standard

As per API 598 or or BS 6755 Part-1. The standard covers inspection, supplementary examination, and pressure test requirements for both resilient-seated and metal-to-metal seated Flanged Valves. Pertains to inspection by the purchaser and to any supplementary examinations the purchaser may require at the valve manufacturer's plant.



Duplex Stainless Steel Flanged Valves Inspection Check Points

All our Duplex Stainless Steel Flanged Valves are 100% carefully inspected through series of dedicate testing procedures, including:

  • Material verification of Duplex Stainless Steel Flanged Valves
  • Dimension check such as tolerance, lobing, out-of-roundness.
  • Final Mechanical Properties of Duplex Stainless Steel Flanged Valves.
  • Overall quality inspection (Includes eddy current (non-destructive) electric testing.)



Duplex Stainless Steel Flanged Valves Seat Materials Options

  • Virgin PTFE
  • PEEK
  • Graphite

Duplex Stainless Steel Flanged Valves Marking and Identifications


Each Duplex Stainless Steel Flanged Valve is identified on proper name plate and on valve body as stated by MSS-SP 25, ASME B16.34 Name plate carries all information on rating, size, valve body and trim material, customer tags.
Marking includes material designations (as per ASTM standard) and heat code and our company trade mark.



Duplex Stainless Steel Flanged Valves Applications

  • Desalination process Application
  • Marine Application
  • Seawater Application
  • Power plants
  • Oil and Gas Industries
  • Petroleum Refineries and Petrochemicals
  • Chemical Industries.
  • Marine and Ship Building Industries
  • Offshore Industries
  • Oil well industry



Duplex Stainless Steel Flanged Valves Packagings

All finished Duplex Stainless Steel Flanged Valves are packed to suit the special conditions for international deliveries and can also customized as per customer's specific requirements.



Duplex Stainless Steel Flanged Valves Documents

Our Duplex Stainless Steel Flanged Valves products are accompanied by certified material test report 3.1 as per DIN EN 10204 / ASTM A1016. Pre material certification can be provided upon request.


We can provide our quality Duplex Stainless Steel Flanged Valves with any world know third party inspection Certifications as following to make ensure the best quality
Duplex Stainless Steel Flanged Valves with Lloyds inspection and certification
Duplex Stainless Steel Flanged Valves with SGS third party inspection and certifications
Duplex Stainless Steel Flanged Valves with  BVQI third party inspection and certifications
.Duplex Stainless Steel Flanged Valves with IRS third party inspection and certifications
Duplex Stainless Steel Flanged Valves with ABS third party inspection service
Duplex Stainless Steel Flanged Valves with KR third party inspection and certifications
Duplex Stainless Steel Flanged Valves with DNV third party inspection and certifications
Lloyds
SGS
BVQI
IRS

ABS

KR
DNV




Our Quality Duplex Stainless Steel Flanged Valves are manufactured with strict quality control system and that is why it is widely acceptable across all industrial sectors.
