Duplex Stainless Steel Globe Valves

Duplex Stainless Steel Globe ValvesWe are India's one of the most reputed manufacturers and suppliers of Duplex stainless steel Globe Valves. Duplex steel Globe valves is a linear motion valve and are designed primarily to stop, start and regulate the through flow. The mechanism of the disk of a DSS Globe valve can be totally removed from the flow path or it can completely close the flow path



Contact to Duplex steel Globe Valves Manufacturers

Conventional duplex steel globe valves can be used for isolation and throttling services. Although these type of valves exhibit slightly higher pressure drops than straight through valves (e.g., DSS gate valve, plug valve, ball valves etc.), they may be used where the pressure drop through the valve is not a controlling factor to be concern.

The practical size limit for these duplex steel globe valves is NPS 12 (DN 300), because the entire system pressure exerted on the disc is transferred to the valve stem portion, Duplex Steel Globe valves larger than NPS 12 (DN 300) are an exception rather than the rule. Larger valves would require that enormous forces be exerted on the stem to open or close the valve under pressure. Although we have manufactured and supplied up to NPS 48 (DN 1200) size Duplex Stainless Steel Globe valves have been used and it worked properly at the project sight.

DSS Globe valves are extensively employed to control flow. We have method of considering the range of flow control, pressure drop, and duty while the designing of these metal Globe valve in our manufacturing manual to avoid premature failure and to assure satisfactory service to end user. Since all pressure ultimately goes to the trim and stem portion, we give more emphasizes more specially on valve trim designed of the valves, subjected to high-differential pressure-throttling service.

Generally the maximum differential pressure across the valve disc should not be exceeding 20 percent of the maximum upstream pressure or 200 psi (1380 kPa) whichever is less to avert premature failure and to make sure value for money to end user of these valves. Duplex stainless steel Globe Valves with special trim can be designed and manufactured by us for applications exceeding these differential pressure limits.

We can part these DSS globe valves in to three different types with co relating to its primary body designs.



Duplex Stainless Steel Globe Valves

Features

  • Duplex Stainless Steel Globe Valves are Higher strength leading to weight saving
  • Duplex Stainless Steel Globe Valves are greater corrosion resistance especially in stress corrosion cracking
  • Duplex Stainless Steel Globe Valves are comparitively lower in price.





Duplex Stainless Steel Globe Valves

Type : Tee Pattern or Z-body

Tee Pattern or Z-body Duplex Stainless Steel Globe ValvesTee Pattern or Z body Duplex Steel Globe valves manufactured and supplied by us are the common body type in Globe valves, with a typical Z-shaped diaphragm. In this type of valves, the horizontal setting of the seat allows the stem and disk components to travel perpendicular to the horizontal line. This designed valve has the lowest coefficient of flow and higher pressure drop. These type of valves are used in severe throttling services, such as in bypass pipe lines around a control valve. Duplex steel Tee-pattern Globe valves can be used in applications where pressure drop is not a matter of concern and throttling is required.

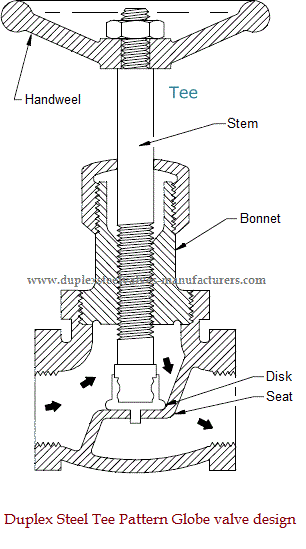

Design and components of Duplex Steel Tee Pattern Globe valve With The help of this side image we can understand the design of Tee Pattern Globe valve and it's components with it's working mechanism.

1. Body
2. Bonnet
3. Stem
4. Disk
5. Seat
6.Handwheel











Contact to Duplex steel Globe Valves Manufacturers and suppliers in India









Duplex Stainless Steel Globe Valves

Type : Angle Pattern

Angle Pattern Duplex Stainless Steel Globe ValvesDuplex steel angle pattern Globe valves design manufactured and supplied by us are an modification of the basic Tee Pattern Duplex steel Globe valves. We have designed the ends of this DSS Globe valve at an angle of 90 degrees, and fluid flow occurs with a single 90 degrees turn. These valves have a slightly lower coefficient of flow than wye-pattern Duplex steel Globe valves. Our these valves can be used in applications that have periods of pulsating flow because of their capability to handle the slugging effect of this type of flow.

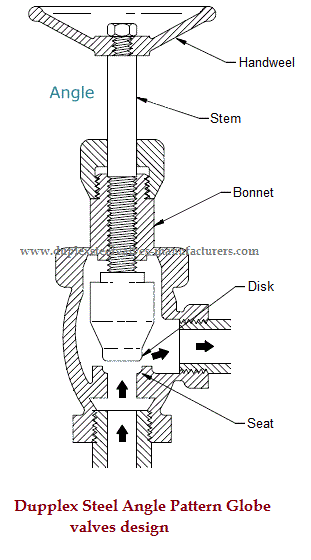

Design and components of Duplex Steel Angle Pattern Globe valveWith The help of this side image we can understand the Design of Angle Pattern Globe valve and it's components with it's working mechanism.

1. Body
2. Bonnet
3. Stem
4. Disk
5. Seat
6.Handwheel





















Duplex Stainless Steel Globe Valves

Type : Wye Pattern or Y-body

Wye Pattern or Y-body Duplex Stainless Steel Globe ValvesDuplex steel Wye pattern Globe valves design and manufactured by Neev Valves are an best possible solution for the high pressure drop, inherent in Globe valve series. This type of Globe valves gives a straighter flow path at full opening and offer the least resistance to flow because the seat and stem are designed to angle at approximately 45 degrees,. These valves can be cracked open for long periods without severe erosion. These globe valves are extensively used for throttling during seasonal or startup operations. The advantage of these type of valves is that it can be rod through to remove debris when used in drain lines that are normally closed.

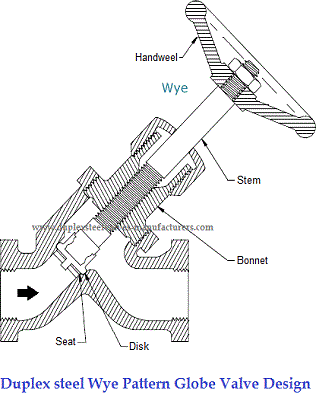

Design of Wye Pattern or Y-body Duplex Stainless Steel Globe ValvesWith The help of this side image we can understand the Design of Angle Pattern Globe valve and it's components with it's working mechanism.

1. Body
2. Bonnet
3. Stem
4. Disk
5. Seat
6.Handwheel












Duplex Stainless Steel Globe Valve

Type of End Connection :-

  • Flanged End Raised Face
  • Butt Weld End
  • RTJ Flanged End





Duplex Stainless Steel Globe Valve Grade Options

These all duplex steel globe valves body are manufactured by casting process and other components are manufactured from solid bars..

  • ASTM A8901A/A995 3A CD4MCu Duplex Stainless Steel Globe Valves

  • ASTM A890/A9951B CD4MCuN Duplex Stainless Steel Globe Valves

  • ASTM A890/A995 2A CE8MN Duplex Stainless Steel Globe Valves

  • ASTM A890/A995 4A CD3MN Duplex Stainless Steel Globe Valves

  •

    Duplex Stainless Steel Globe Valve

    Size Range :- 1/2" NB to 72" NB



    Duplex Stainless Steel Globe Valve

    Pressure Range :- 150#, 300#, 600#, 800#, 900#, 1500#, 2500#



    Duplex Stainless Steel Globe Valve

    Design Standard :-

    • As per API 600 for size up to 24" NB
    • As per BS 1414 for size above 24" NB

    Duplex Stainless Steel Globe Valve

    Testing Standard :-

    • As per API 598
    • As per BS EN 12266-1



    Duplex Stainless Steel Globe Valve

    Face to Face Dimensions :-

    • As per ASME B 16.10



    Duplex Stainless Steel Globe Valve

    End Connection Dimensional Standard :-

    • Flanged End As per - ASME B 16.5
    • Butt Weld End As per – ASME B 16.25



    Duplex Stainless Steel Globe Valve

    Pressure – Temperature :-

    • Chart As per ASME B 16.34

    Duplex Stainless Steel Globe Valve Dimensional Specifications

    These all duplex steel globe valves body are manufactured by casting process and other components are manufactured from solid bars..

    • ASTM A8901A/A995 3A CD4MCu Duplex Stainless Steel Globe Valves Series ANSI 150
    • ASTM A890/A9951B CD4MCuN Duplex Stainless Steel Globe Valves Series ANSI 150
    • ASTM A890/A995 2A CE8MN Duplex Stainless Steel Globe Valves Series ANSI 150
    • ASTM A890/A995 4A CD3MN Duplex Stainless Steel Globe Valves Series ANSI 150
    • ASTM A8901A/A995 3A CD4MCu Duplex Stainless Steel Globe Valves Series ANSI 300
    • ASTM A890/A9951B CD4MCuN Duplex Stainless Steel Globe Valves Series ANSI 300
    • ASTM A890/A995 2A CE8MN Duplex Stainless Steel Globe Valves Series ANSI 300
    • ASTM A890/A995 4A CD3MN Duplex Stainless Steel Globe Valves Series ANSI 300
    • ASTM A8901A/A995 3A CD4MCu Duplex Stainless Steel Globe Valves Series ANSI 600
    • ASTM A890/A9951B CD4MCuN Duplex Stainless Steel Globe Valves Series ANSI 600
    • ASTM A890/A995 2A CE8MN Duplex Stainless Steel Globe Valves Series ANSI 600
    • ASTM A890/A995 4A CD3MN Duplex Stainless Steel Globe Valves Series ANSI 600





    Duplex Stainless Steel Globe Valve

    Operating Systems :-

    • Wheel Operated
    • Gear Operated
    • Electrical Actuator Operated
    • Pneumatic Operated
    • Hydraulic Operated



    Applications of Duplex Stainless Steel Globe valves


    The following are some of the typical applications of Globe valves from the design part of view.:

    Turbine seals and drains
    Turbine lube oil system or applications
    Systems where flow needs to be regulated
    Fuel oil system where flow is regulated and leak tightness is of importance
    Chemical feed, condenser air extraction, and extraction drain applications.
    High-point vents and low-point drains applications when leak tightness and safety is a concern.
    Boiler vents and drains, main steam vents and drains, and heater drains

    Duplex Stainless Steel Globe Valves

    Test procedures :-

    All our fittings are 100% carefully inspected through series of dedicate testing procedures, including:

    • Material verification of Duplex Stainless Steel Globe Valves
    • Dimension check such as tolerance, lobing, out-of-roundness, length, straightness of Duplex Stainless Steel Globe Valves
    • Duplex Stainless Steel Globe Valves threading roughness inspection
    • Final Mechanical Properties of Duplex Stainless Steel Globe Valves if required or are suppose to be changed by manufacturing operation.
    • Overall quality inspection (Includes eddy current (non-destructive) electric testing.)



    Packaging of Duplex Stainless Steel Globe Valves

    All finished Duplex Stainless Steel Globe Valves are packed to suit the special conditions for international deliveries and can also customized as per customer's specific requirements.



    Documentation of Duplex Stainless Steel Globe Valves


    Our Duplex Stainless Steel Globe Valves products are accompanied by certified material test report 3.1 as per DIN EN 10204 / ASTM A1016. Pre material certification can be provided upon request.



    We are 100 percent confident on our quality of Duplex steel Gate Valves and that is why we are open to accept orders for the same with any third party inspection certifications.
    Duplex steel Gate valves with third party inspection  certifications



    Our Duplex steel Globe valves are manufactured with state of the art facility and with strict quality check norms and that is why these valves are acceptable across all industrial sectors.

    Duplex Steel  Globe valves for Oil & Gas Industries
    Oil & Gas
    Industries
    Duplex Steel globe valves for nuclear industries
    Nuclear Power
    Projects
    Duplex Steel globe valves for  Nuclear Power  projects
    Petroleum Refineries
    Duplex Steel  globe valves for Hydro Power  projects
    Hydro Power
    Projects
    Duplex Steel globe valves for Offshore Industries
    Chemical
    Industries
    Duplex Steel globe valves for Pharmaceutical Industries
    Pharmaceutical
    Industries
    Duplex Steel globe valves for Pipe Lines
    Offshore Industries
    Duplex Steel globe valves for Marine Industries
    Process Industries
    Duplex Steel globe valves for Process Industries
    Pipe Line Projects

    Marine
    Industries



    Please select the best suitable Duplex Steel Globe Valves from our wide range of globe valves

    Contact to Duplex steel Globe Valves Manufacturers

    Countries where Neev Valves can supply Duplex Steel Globe Valves



    Neev Valves Welcomes Distributors for Duplex Steel Globe Valves
