Duplex Stainless Steel Flanged Ball Valves

We are India based one of the leading manufacturers and suppliers of Duplex steel flanged ball valves. Duplex steel flanged ball valves are nothing but we can say that it is an advanced design to normal ball valves. Duplex Steel Flanged Ball valve is a quarter-turn rotational motion valve that uses a ball-shaped disk to stop or start flow. The ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet, If the valve is opened. .The ball is rotated so that the hole is perpendicular to the flow openings of the valve body and the flow is stopped, If the valve is closed.

We are manufacturing DSS flanged ball valves basically in threedesigns: full port, venturi port and reduced port. The full-port valve has an internal diameter equal to the inner diameter of the run pipe. Venturi and reduced-port versions generally are one pipe size smaller than the run pipe line size.

Types of Duplex stainless steel Flanged Ball Valves

We are manufacturing and supplying Duplex steel Ball valves in different body configurations and the most regular valves are:

1. Top entry Duplex Steel Flanged Ball valves, allow access to valve internals for maintenance by removal of the valve Bonnet-cover.In this design It is not required to be removed complete valve from the run pipe where it have been installed.
2. Split body Duplex Steel Flanged Ball valves consists of a two parts, where one part is smaller comparing to the other. The ball is inserted in the larger body part, and the smaller body part is assembled by a bolted connection.



Duplex Steel Two Piece Flanged Ball Valve

Duplex Steel Two Piece Flanged Ball Valve



Duplex Steel Three Piece Flanged Ball Valve

Duplex Steel Three Piece Flanged Ball Valve

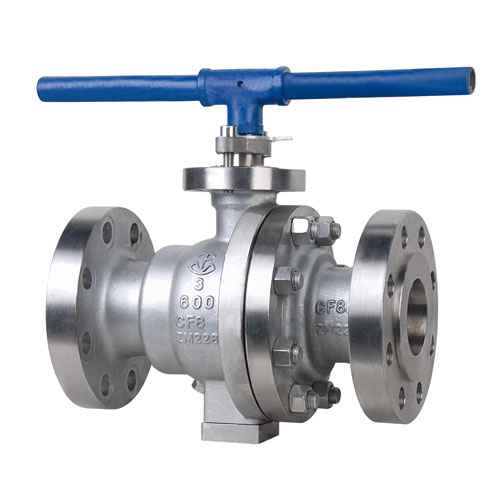

Duplex Steel API Two Pieces Trunnion Mounted Flanged Ball Valve


Duplex Steel API Two Pieces Trunnion Mounted Flanged Ball Valve

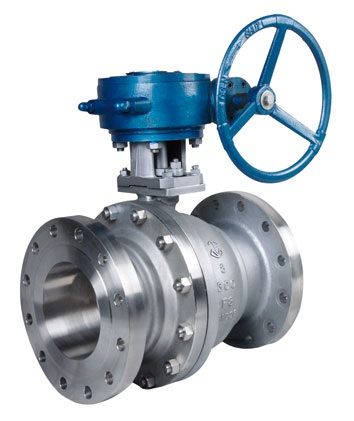

Duplex Steel API Worm Gear Flanged Floating Ball Valve

Duplex Steel API Worm Gear Flanged Floating Ball Valve

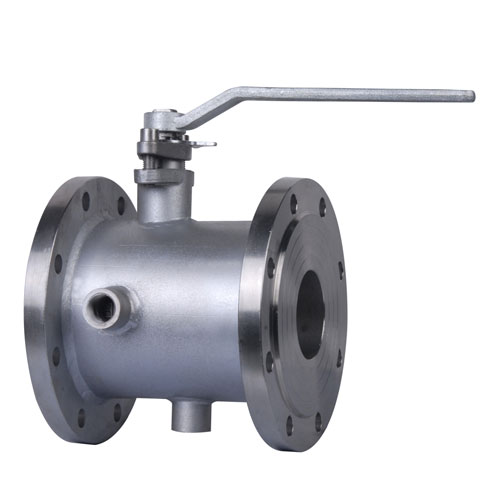

Duplex Steel Jacket Flanged Ball Valve

Duplex Steel Jacket Flanged Ball Valve

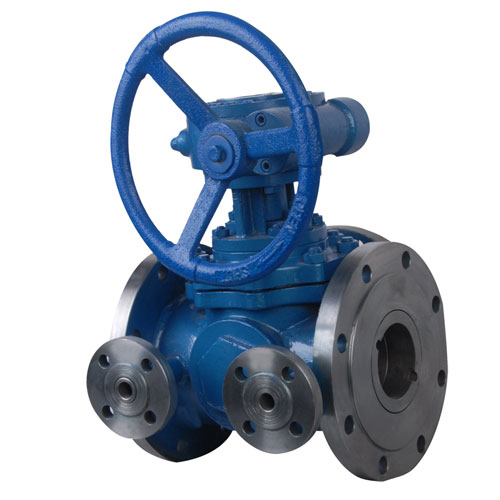

Duplex Steel T Type Jacket Flanged Ball Valve

Duplex Steel T Type Jacket Flanged Ball Valve

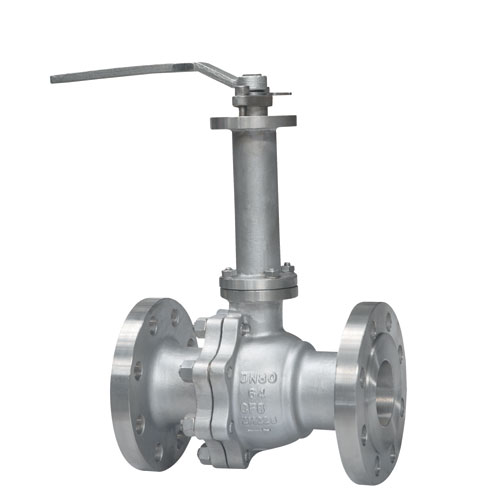

Duplex Steel Cryogenic Two Pieces Flanged Ball Valve

Duplex Steel Cryogenic Two Pieces Flanged Ball Valve





Duplex Steel API Worm Gear Flanged Floating Ball Valve

Duplex Steel API Worm Gear Flanged Floating Ball Valve



High Pressure 3PC Trunnion Mounted Duplex Steel Flanged Ball Valve ANSI B16.34 / API6D / BS5351

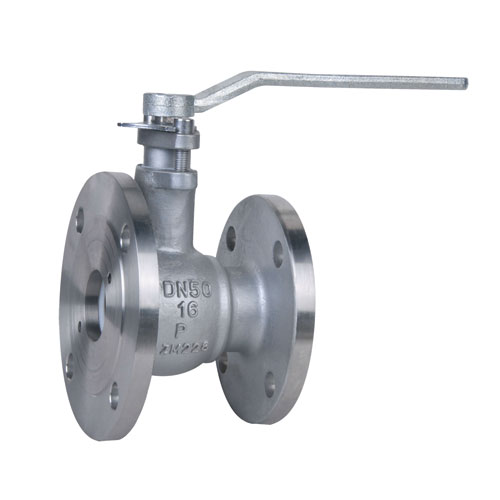

Duplex Steel Dumping Flanged Ball Valve

Duplex Steel Dumping Flanged Ball Valve

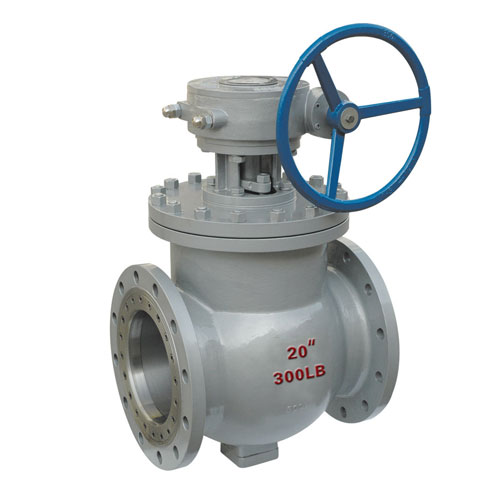

Duplex Steel Dumping Eccentric Trunnion Flanged Semi Ball Valve



Duplex Steel Dumping Eccentric Trunnion Flanged Semi Ball Valve



Duplex Steel Forged Trunnion Mounted Flanged Ball Valve

Duplex Steel Forged Trunnion Mounted Flanged Ball Valve

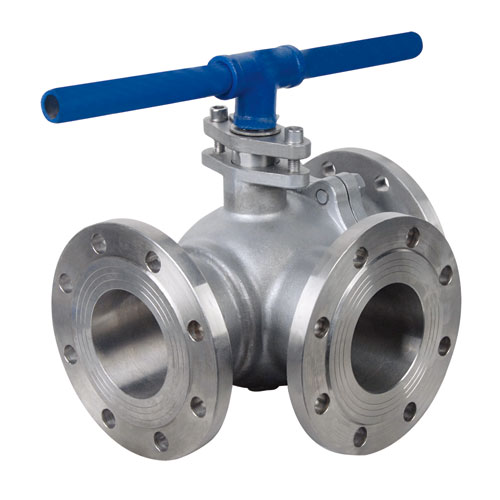

Duplex Steel L Type Three Way Flanged Ball Valve

Duplex Steel L Type Three Way Flanged Ball Valve

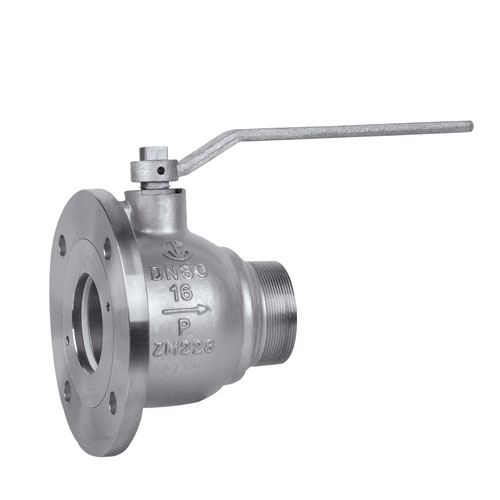

Duplex Steel NPT Threaded Dumping Flanged Ball Valve

Duplex Steel NPT Threaded Dumping Flanged Ball Valve

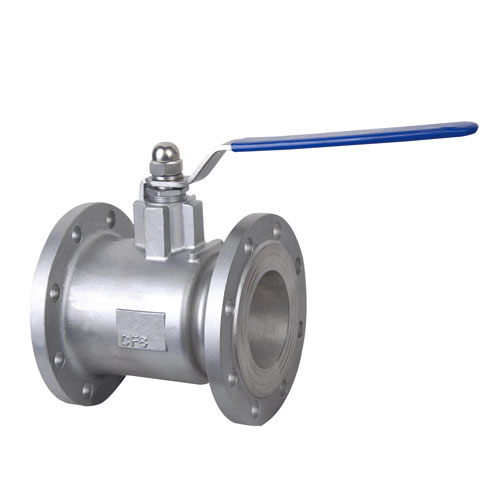

Duplex Steel One Piece Floating Flanged Ball Valve

Duplex Steel One Piece Floating Flanged Ball Valve

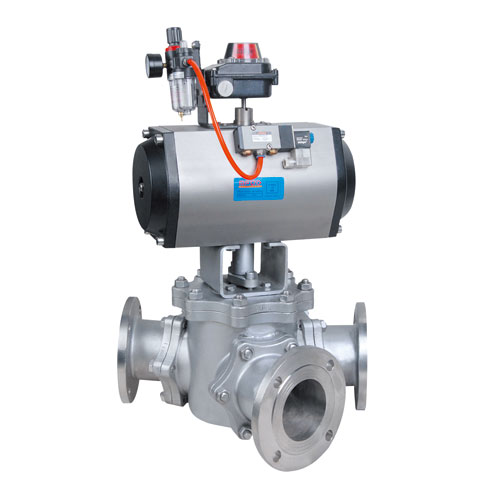

Duplex Steel Pneumatic 135 Degrees Three Way Flanged Ball Valve

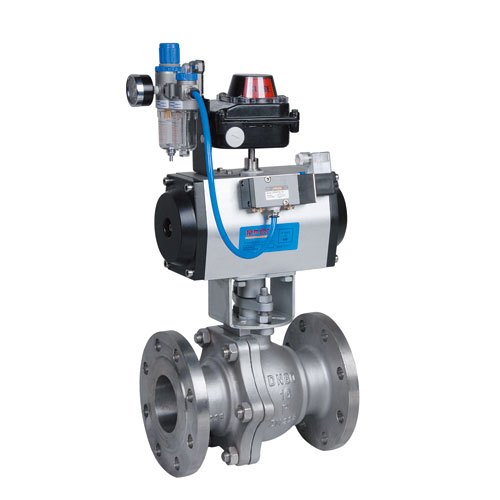

Duplex Steel Pneumatic Two Piece Flanged Floating Ball Valve


Duplex Steel Pneumatic Two Piece Flanged Floating Ball Valve

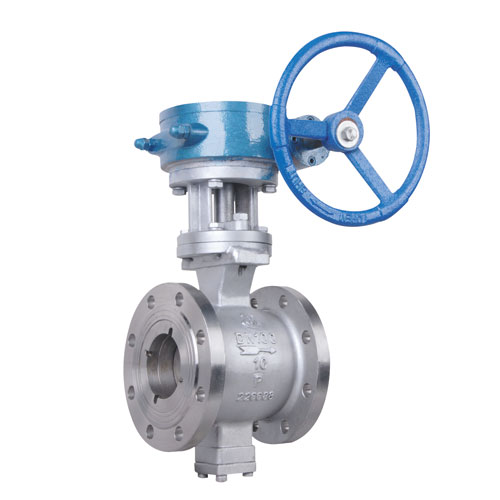

Duplex Steel Worm Gear V Type Trunnion Mounted Flanged Ball Valve


Duplex Steel Worm Gear V Type Trunnion Mounted Flanged Ball Valve



Duplex Steel Italian Short Type Flanged Ball Valve

Duplex Steel Italian Short Type Flanged Ball Valve



Duplex Stainless Steel Flanged Ball Valves Grades



  • ASTM A182 F51 Duplex Stainless Steel Flanged Ball Valves
  • ASTM A182 F53Duplex Stainless Steel Flanged Ball Valves
  • UNS 31803 Duplex Stainless Steel Flanged Ball Valves
  • UNS 2205 Duplex Stainless Steel Flanged Ball Valves
  • 1.4462 Duplex Stainless Steel Flanged Ball Valves



Applications of Duplex Stainless Steel Flanged Ball Valves

The following are some typical applications of Flanged Ball valves:

Air, gaseous, and liquid applications
Drains and vents in liquid, gaseous, and other fluid services applications
Steam service applications.

Advantages of Duplex Stainless Steel Flanged Ball Valves :

Duplex Stainless Steel Flanged Ball Valves are Quick quarter turn on-off operation
Duplex Stainless Steel Flanged Ball Valves are Tight sealing with low torque
Duplex Stainless Steel Flanged Ball Valves are Smaller in size than most other valves



Disadvantages of Duplex Stainless Steel Flanged Ball Valves :

Conventional Duplex Stainless Steel Flanged Ball Valves have poor throttling properties
In slurry or other applications, the suspended particles can settle and become trapped in body cavities causing wear, leakage, or valve failure in Duplex Stainless Steel Flanged Ball Valves.



Duplex Stainless Steel Flanged Ball Valves Design Standards and Specifications

As per API 6D, As per BS 5351 or ISO 14313:1999

Duplex Stainless Steel Flanged Flanged Ball Valves Face to Face Standard

As per ASME B 16.10



Duplex Stainless Steel Flanged Flanged Ball Valves End Connection

Flanged End ASA 150# Class, 300# Class, 600# Class, 900# Class, 1500# Class, 2500# Class



Duplex Stainless Steel Flanged Flanged Ball Valves Operating System

Manual Lever Operated | Gear Operated | Pneumatic Operated | Acuator Operated

Duplex Stainless Steel Flanged Ball Valves Testing Standards

API Standard 594 covers Flanged, Lug, Wafer and Butt-welding design Flanged Ball Valves material, face-to-face dimensions, pressure-temperature ratings, and examination, inspection, and test requirements of Flanged Ball Valves.

Duplex Stainless Steel Flanged Ball Valves Inspection Standard

As per API 598 or or BS 6755 Part-1. This standard covers inspection, supplementary examination, and pressure test requirements for both resilient-seated and metal-to-metal seated Flanged Ball Valves. Pertains to inspection by the purchaser and to any supplementary examinations the purchaser may require at the valve manufacturer's plant.



Duplex Stainless Steel Flanged Ball Valves Inspection Check Points

All our Duplex Stainless Steel Flanged Ball Valves are 100% carefully inspected through series of dedicate testing procedures, including:

  • Material verification of Duplex Stainless Steel Flanged Ball Valves
  • Dimension check such as tolerance, lobing, out-of-roundness.
  • Final Mechanical Properties of Duplex Stainless Steel Flanged Ball Valves.
  • Overall quality inspection (Includes eddy current (non-destructive) electric testing.)



Duplex Stainless Steel Flanged Ball Valves Seat Materials Options

  • Virgin PTFE
  • PEEK
  • Graphite

Duplex Stainless Steel Flanged Ball Valves Marking and Identifications


Each Duplex Stainless Steel Flanged Valve is identified on proper name plate and on valve body as stated by MSS-SP 25, ASME B16.34 Name plate carries all information on rating, size, valve body and trim material, customer tags.
Marking includes material designations (as per ASTM standard) and heat code and our company trade mark.



Duplex Stainless Steel Flanged Ball Valves Applications

  • Desalination process Application
  • Marine Application
  • Seawater Application
  • Power plants
  • Oil and Gas Industries
  • Petroleum Refineries and Petrochemicals
  • Chemical Industries.
  • Marine and Ship Building Industries
  • Offshore Industries
  • Oil well industry



Duplex Stainless Steel Flanged Ball Valves Packagings

All finished Duplex Stainless Steel Flanged Ball Valves are packed to suit the special conditions for international deliveries and can also customized as per customer's specific requirements.



Duplex Stainless Steel Flanged Ball Valves Documents

Our Duplex Stainless Steel Flanged Ball Valves products are accompanied by certified material test report 3.1 as per DIN EN 10204 / ASTM A1016. Pre material certification can be provided upon request.


We can provide our quality Duplex Stainless Steel Flanged Ball Valves with any world know third party inspection Certifications as following to make ensure the best quality
Duplex Stainless Steel Flanged Ball Valves with Lloyds inspection and certification
Duplex Stainless Steel Flanged Ball Valves with SGS third party inspection and certifications
Duplex Stainless Steel Flanged Ball Valves with  BVQI third party inspection and certifications
.Duplex Stainless Steel Flanged Ball Valves with IRS third party inspection and certifications
Duplex Stainless Steel Flanged Ball Valves with ABS third party inspection service
Duplex Stainless Steel Flanged Ball Valves with KR third party inspection and certifications
Duplex Stainless Steel Flanged Ball Valves with DNV third party inspection and certifications
Lloyds
SGS
BVQI
IRS

ABS

KR
DNV




We are using cent percent genuine raw materials from well verified source of supply and manufacture these duplex steel flanged ball valves with strict quality controll and thatt makes us a leading brand for duplex steel valves in India and in overseas market for all industrial sectors.
