Duplex Stainless Steel Two Valve Manifolds



Duplex Stainless Steel Two Valve manifolds are used in applications where it is necessary to relieve the pressure in the down stream when isolating an instrument or part of a system. We manufacture these two valve manifolds in various mounting styles with a wide range of connection options. Depending on the fluid medium and environmental factors, Duplex Stainless Steel Two way manifolds valves are the ideal solution giving reliability, improved safety performance and cost reduction.

Contact Duplex steel Two Valve Instrumentations Manifold Manufacturers in India

Duplex Stainless Steel Two Valve Manifolds valvesWe are manufacturers, Suppliers and exporters of Instrumentations DSS Two Valve Manifold comprises of isolation, drain / vent and equalizing valve which are use to control instrumentation system. We manufacture and Supply different configurations of Two valve Manifold Valves offer different options for isolation, drain / vent and equalizing. These valves are also best suitable for isolating, calibration and draining (venting) pressure gauges and transmitters. The main feature of the ese two valve manifold is that by connecting a test gauge to the vent port, it is possible to check the calibration of the installed instrument without removing it from the installation.

We are manufacturing and supplying Duplex Stainless Steel Two valve manifolds, being designed for connecting system impulse line & transmitters. These manifold consist of two valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These manifolds are rugged in construction to withstand high pressures and temperatures. Duplex Steel Two valve manifolds are rated for pressures as high as 6000 PSI at 200 o F or 4000 PSI at 500 o F. with PTFE Packing and Grafoil Packing is used for a higher temperature applications. These duplex stainless steel manifolds combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.



Duplex Stainless Steel Straight Type- Remote Mounting Two Valve Manifolds
Duplex Stainless Steel Straight Type- Remote Mouting Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting Compact Design   Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mouting Compact Design Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting  Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mouting Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting Two Valve Manifolds  Duplex Stainless Steel Straight Type - Remote Mouting Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar-LH -  Two Valve Manifolds Duplex Stainless Steel Straight Type - Remote Mouting- Coplanar-LH - Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting- Coplanar-RH -  Two Valve Manifolds Duplex Stainless Steel Straight Type - Remote Mouting- Coplanar-RH - Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting  Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mouting Two Valve Manifolds
Duplex Stainless Steel Straight Type - Remote Mounting  Two Valve Manifolds Duplex Stainless Steel Straight Type - Remote Mouting Two Valve Manifolds
Duplex Stainless Steel Straight - Extended Type  Two Valve Manifolds Duplex Stainless Steel Straight - Extended Type Two Valve Manifolds
Duplex Stainless Steel T-Type Direct Mounting- Compact Design  Two Valve Manifolds
Duplex Stainless Steel T-Type Direct Mounting- Compact Design Two Valve Manifolds
Duplex Stainless Steel T-Type Direct Mounting  Two Valve Manifolds
Duplex Stainless Steel T-Type Direct Mounting Two Valve Manifolds
Duplex Stainless Steel Coplanar - Direct mounting   Two Valve Manifolds Duplex Stainless Steel Coplanar - Direct mounting Two Valve Manifolds
Duplex Stainless Steel Coplanar - Direct Mounting  Two Valve Manifolds Duplex Stainless Steel Coplanar - Direct Mounting Two Valve Manifolds
Duplex Stainless Steel H-Type - Direct Mounting   Two Valve Manifolds
Duplex Stainless Steel H-Type - Direct Mounting Two Valve Manifolds


Duplex Steel Straight Type Two Valve Manifolds




Duplex Steel Straight Type Two Valve Manifolds valves Duplex Steel Straight Type Design Two valve manifolds are designed and manufactured by us for remote or separate mounting applications. In this type of valves design permit us connecting from process line 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate, Bleed or Vent valve calibration of a static pressure transmitter or gauge. This design of Duplex stainless steel Manifold valves are best suitable for pipe to pipe mounting applications. Bleed or vent connection with Duplex Steel plug will be provided on request.
Weight of each Duplex steel valve will be approximate 0.95 Kgs. (2.1 Lbs.).



Duplex Steel Single Flanged Integral Tee Type Two Valve Manifold



Duplex Steel Single Flanged Integral Tee Type Design Two Valve Manifolds valves Duplex Stainless Steel Single Flanged Integral (Tee Type Design) Two Valve Manifolds valves are designed for direct mounting. Connecting from process pipe line side 1/2" NPT (F) and Instrument side Flanged connection on suitable for DP transmitter. Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate, Bleed or Vent valve calibration of a static pressure transmitter or gauge.
Bleed or vent connection with Duplex Stainless Steel plug will be provided on request.



Duplex Steel H Type Design Two Valve Manifolds



Duplex Steel H Type Design Two Valve Manifolds valves As we can see in the side image of Duplex Steel H Type Design Two Valve Manifolds valves, these valves are also called or known commonly as Flange to Flange Two way manifold valves.

We are manufacturing these Two way H type Flange to flange Duplex steel Manifolds valves in all duplex steel grades.


Duplex Steel Integral Mount Type Two Valve Manifolds



Duplex Steel Integral Mount Type Design Two Valve ManifoldsIn the side image we can see Duplex Steel Integral Mount Type Design Two Valve Manifold. All the components of these manifold valve are manufactured on CNC and VMC machine centers with the world class quality and finish out put.

Ask for the complete technical data sheet of DSS Integral Mount Type Design Two Valve Manifolds manufactured and supplied by us with self certified MTC with all the orders.





Duplex Steel Remote Mount Type Design Two Valve Manifolds



Duplex Steel Remote Mount Type Design Two Valve Manifolds In the side image we can see Duplex Steel Remote Mount Type Design Two Valve Manifold. All the components of these two way manifold valve are being manufactured on CNC and VMC machine centers with the world class quality and finish out put. Ask for the complete technical data sheet of DSS Remote Mount Type Design Two Valve Manifolds manufactured and supplied by us with self certified MTC with all the orders.





Duplex Steel Base Vented Type Design Two Valve Manifolds



Duplex Steel Base Vented Type Design Two Valve Manifolds In the side image we can see Duplex Steel Base Vented Type Design Two Valve Manifold. In these type of duplex steel manifolds vent option in on the base side. Ask for the complete technical data sheet of DSS Base Vented Type Design Two Valve Manifolds manufactured and supplied by us with self certified MTC with all the orders.

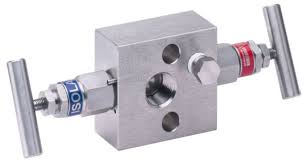

Duplex Steel Base Mount Two Valve Manifolds



Duplex Steel Base Mount Two Valve Manifolds In the side image we can see Duplex Steel Remote Mount Type Design Two Valve Manifold. All the components of these two way manifold valve are being manufactured on CNC and VMC machine centers with the world class quality and finish out put. Ask for the complete technical data sheet of DSS Remote Mount Type Design Two Valve Manifolds manufactured and supplied by us with self certified MTC with all the orders.



Duplex Steel Direct Mount Type Design Two Valve Manifolds

Contact to Duplex steel Two Valve Instrumentations Manifolds Manufacturers



Using the Duplex Steel Isolate & Bleed Manifold Valves

In normal operation the “isolate” valve is open while the “vent” valve is closed
To remove the instrument, first close the “isolate” valve, then open the “vent” valve to relieve pressure upstream of the “isolate” valve



By connecting a test gauge to the vent port of this Duplex Steel Two Valve Manifold, it is possible to check the calibration of the installed instrument without removing it from the installation
